R&D / 特别款

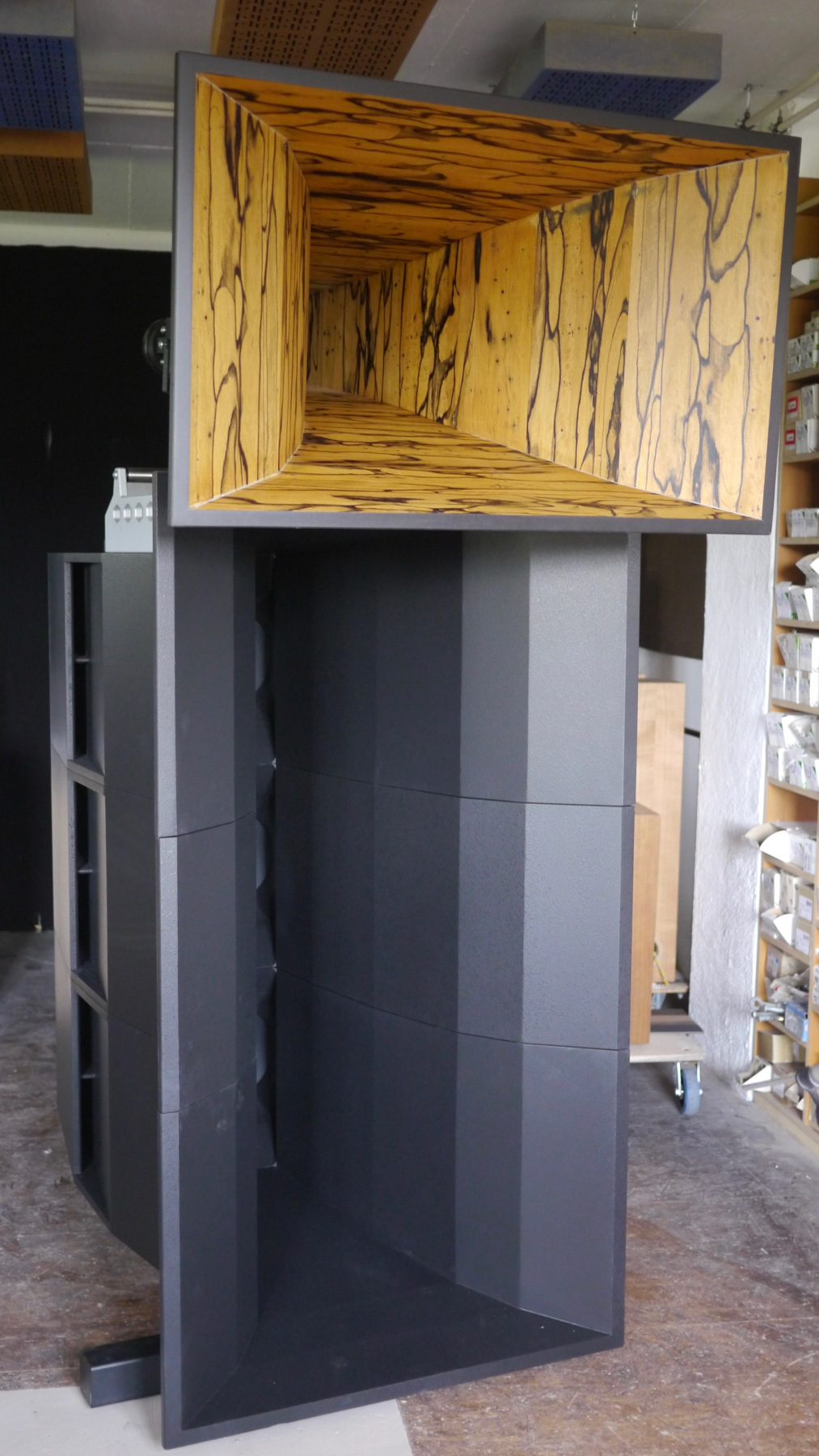

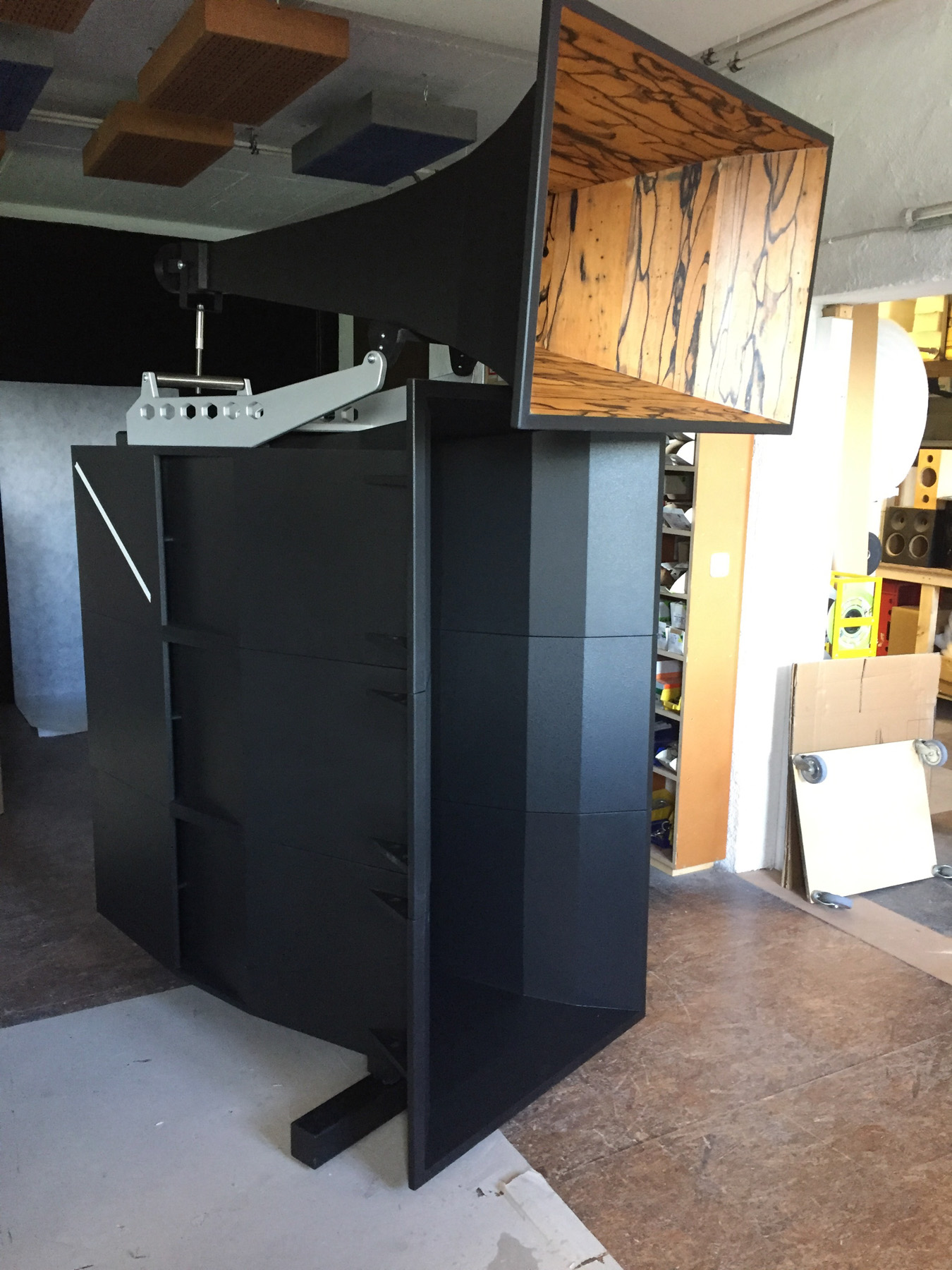

Concert X

研发与限量特别型号，持续探索号角声学的边界。

Specifications · 技术参数

Concert X 完整技术规格

参数项目	规格值
箱体材质 / Material	Gold plated tellurium copper
板材厚度 / Thickness	25mm / 1"
内部结构 / Internal Bracing	Structural bracing interaction
Cross over chamber	Open air Crossover
频率响应 / Frequency range	30Hz - 20kHz ± 2dB (*)
低音单元 / Woofer	2x 380mm / 15"
Bass Cabinet	Horn in Open Baffle
Porting	—
号角负载 / Horn load	Front
Cross over frequency	850 Hz
Midhigh	Compression driver
Horn Throat	2"
振膜尺寸 / Membrane dimensions	100mm / 4"
Max power input (RMS)	150 W RMS
效率 / Efficiency	108 dB
阻抗 / Impedance	8 Ohm
Impedance linearization	Flat impedance curve
Terminal	Bi-Amping
Feets	Adjustable Spykes
尺寸（高×宽×深） / Dimensions	—
重量 / Weight	150 kg
